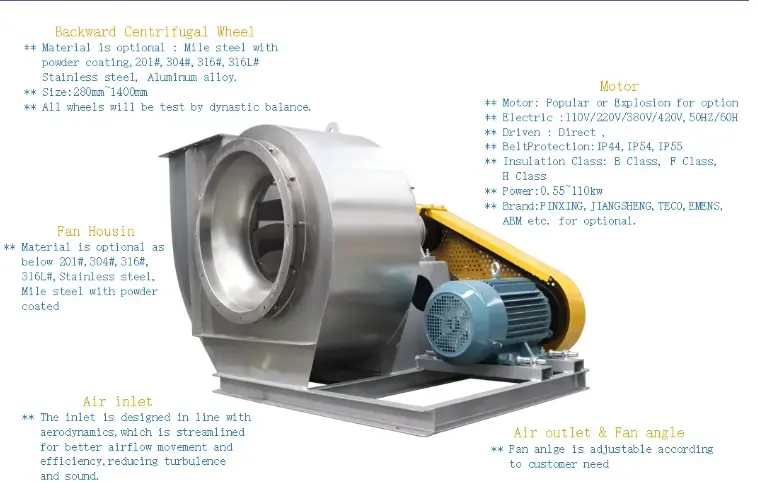

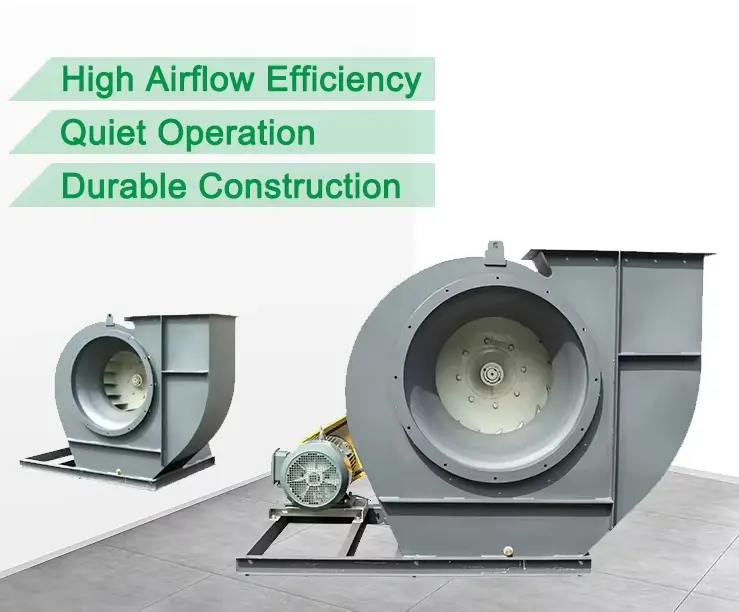

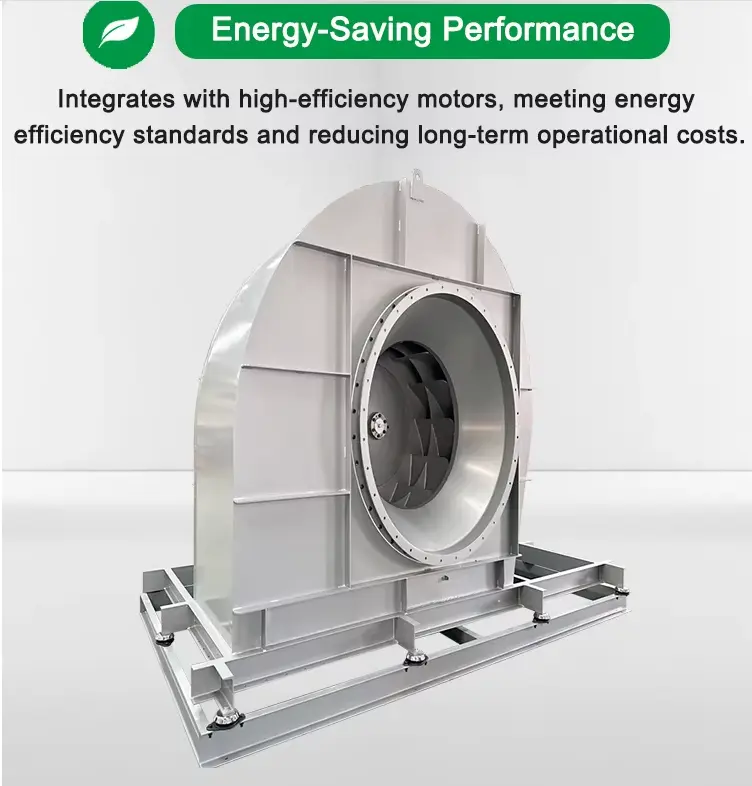

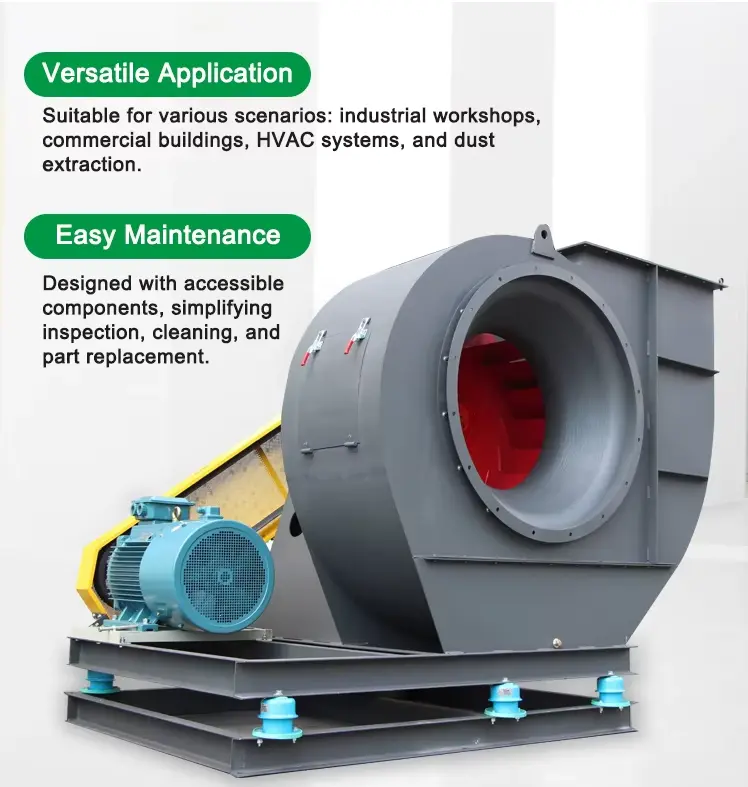

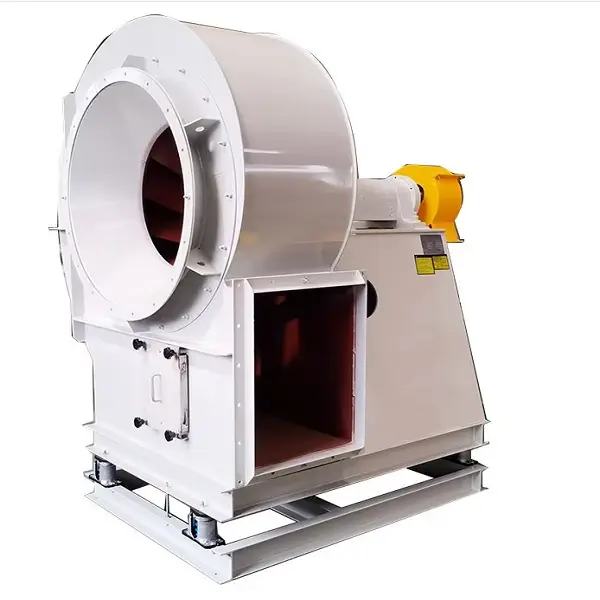

قسم C سینٹرفیوگل وینٹیلیشن فین

پروجیکٹ

رفتار

طاقت

ہوا کا بہاؤ

کل دباؤ

r/منٹ

کلو واٹ

m³/h

پا

2.8 سی

2900

1.5-2

1131-2356

606-994

2900

0.75-2/220v

1174-1800

619-776

3.2C

2900

2.2-2

1688-3517

792-1300

2200

0.75-2

1483-3517

579-726

1800

0.55-2

1213-1860

387-486

3.6 سی

2900

3-2

2664-5268

989-1578

2200

1.5-2

2310-3434

723-881

1800

0.75-2

1890-2810

483-590

4C

2900

5.5-2

4012-7419

1320-2014

2300

2.2-2

3573-5491

1238-917

2000

1.5-2

3107-4775

694-936

1700

1.1-2

2641-4058

501-676

4.5 سی

2900

7.5-2

5712-10562

1673-2554

2300

4-2

5088-7819

1163-1570

2000

3-2

4428-6799

879-1187

1700

2.2-2

3761-5779

635-858

5C

2900

15-2

7728-15455

2019-3187

2300

7.5-2

7022-11363

1468-1978

2000

5.5-2

6106-9881

1110-1495

1700

3-2

5092-8399

802-1080

5.6C

2600

18.5-2

12734-17824

2541-3209

2300

15-2

11265-15768

1511-1989

2000

7.5-2

9795-13711

1504-1900

1700

5.5-2

8326-11654

1086-1372

1400

3-2

6857-9589

737-930

6C

2240

15-4

10314-20628

1733-2734

2000

11-4

9209-18418

1380-2176

1800

7.5-4

8288-16576

1116-1760

1600

5.5-4

7367-14734

881-1389

1450

4-4

6677-13353

724-1137

1120

2.2-4

5157-10314

431-679

900

1.5-4

4144-8288

278-438

800

1.1-4

3684-7367

220-346

6.3C

2200

18.5-2

15342-21474

2303-2908

1900

11-2

13250-18546

1718-2169

1600

7.5-2

11158-15618

1218-1538

1300

5.5-2

9066-12689

804-1015

1000

2.2-4

6973-9761

475-600

700

0.75-4

4881-6833

233-294

7.1C

2000

22-4

17000-28000

2150-2680

1800

18.5-4

15736-25265

1980-2294

1600

15-4

13987-22635

1823-2414

1450

11-4

12676-20513

1468-1873

1200

5.5-4

10490-16976

1120-1276

960

3-4

8392-13581

512-689

700

1.5-4

6119-9903

272-366

8C

1800

30-2

29646-35240

3032-3143

1800

37-2

34105-41427

2302-2920

1600

22-2

29000-31000

2390-2878

1500

18.5-4

17000-27800

2210-2700

1250

11-4

15643-25297

1106-1507

112

7.5-4

17224-19705

887-1124

1000

5.5-4

13914-16022

707-895

900

4-4

9832-14620

576-725

800

3-4

8732-16190

452-485

9C

1500

22-4

20530-28000

1420-2180

1700

30-4

24800-39850

1850-2720

1600

37-2

28000-43200

2100-3100

1450

45-2

29800-45900

2480-3520

10C

1450

55-4

51008-54800

2400-2980

1350

45-4

45000-50128

1950-2780

1250

37-4

34863-48797

1877-2373

1120

30-4

31237-43722

1505-1902

1000

18.5-4

27890-39038

1199-1514

900

15-4

25101-35234

970-1225

800

11-4

22312-31230

766-967

710

7.5-4

19802-27717

603-761

630

5.5-4

17571-24594

475-577

560

4-4

15684-21861

375-437

11.2C

900

30-4

29850-52700

1350-2020

950

37-4

31980-56470

1550-2320

980

45-4

34120-60230

1770-2640

980

55-4

36550-64530

2030-3040

1000

75-4

40210-70990

2460-3670

12C

1120

75-4

53978-75552

2172-2746

1000

45-4

48195-60397

1969-2185

1000

55-4

69953-67457

1729-1859

900

37-4

13375-60712

1399-1767

800

22-4

38556-41973

1376-1395

800

30-4

45391-53996

1104-1321

710

18.5-4

34218-47895

869-1097

630

15-4

30362-42498

684-863

560

7.5-4

26989-29381

676-682

560

11-4

31774-37776

540-646

12.5 سی

1150

132-4

83685-102396

2586-3168

1000

90-4

72000-91000

2340-2900

850

75-4

69000-82000

2200-2700

700

55-4

66000-71000

1980-2400

14C

1300

160-4

98000-118000

2500-3100

1000

110-4

76535-107124

2361-2985

950

90-4

69000-96000

2100-2800

850

75-4

68881-96412

1908-2412

800

55-4

61228-85699

1506-1903

710

37-4

54340-76058

1185-1497

630

30-4

48217-67488

932-1177

560

18.5-4

42859-59990

736-929

500

15-4

38267-53562

587-741

450

11-4

34440-48206

474-599
